Perfectly Square Edge Markers

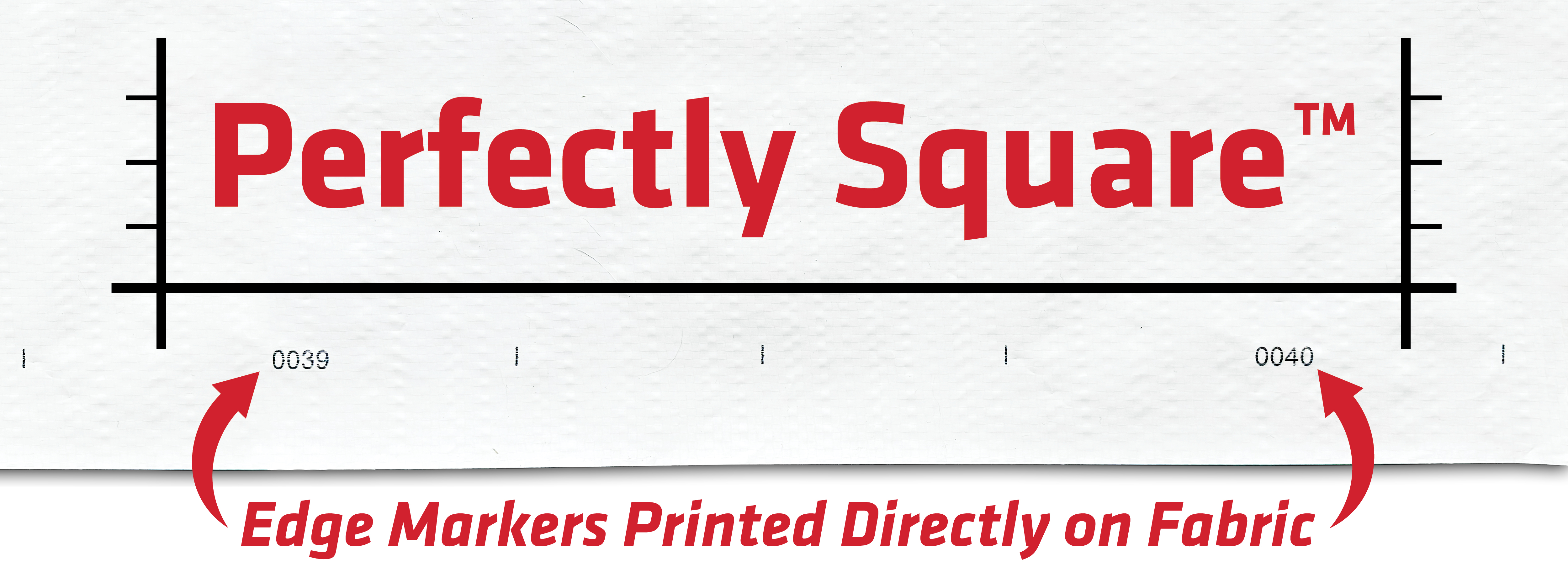

Perfectly Square Edge Markers™ printed directly on Syseal™ fabric

Downloads

  • Perfectly Square Brochure
    PDF
  • Simple Saver® System - New Construction Specifications
    PDF

Perfectly Square Edge Markers streamline the alignment and clamping of the Syseal™ liner system fabric throughout the entire bay. Thermal Design’s innovative edge markers help ensure precision, efficiency and aesthetics when installing the Simple Saver® System. Perfect for training new employees and a valuable feature recognized by experienced installers.

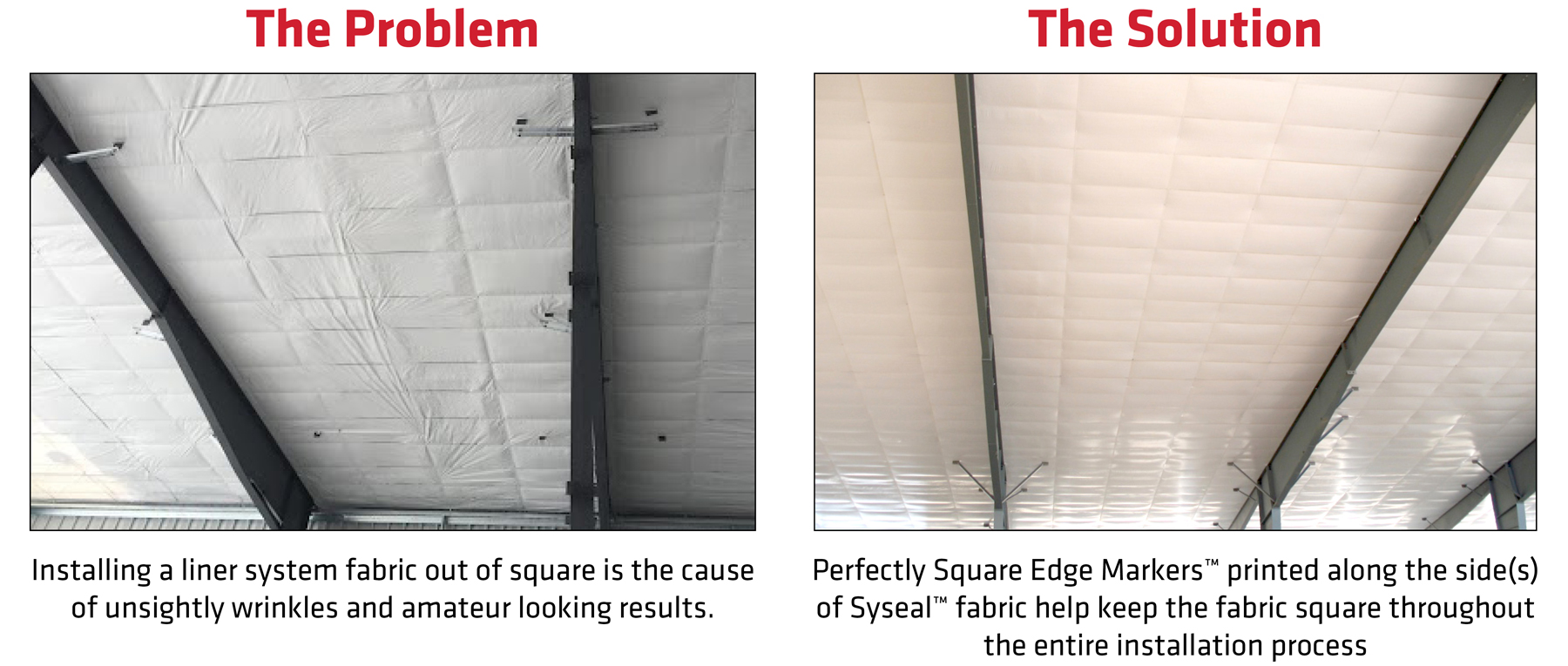

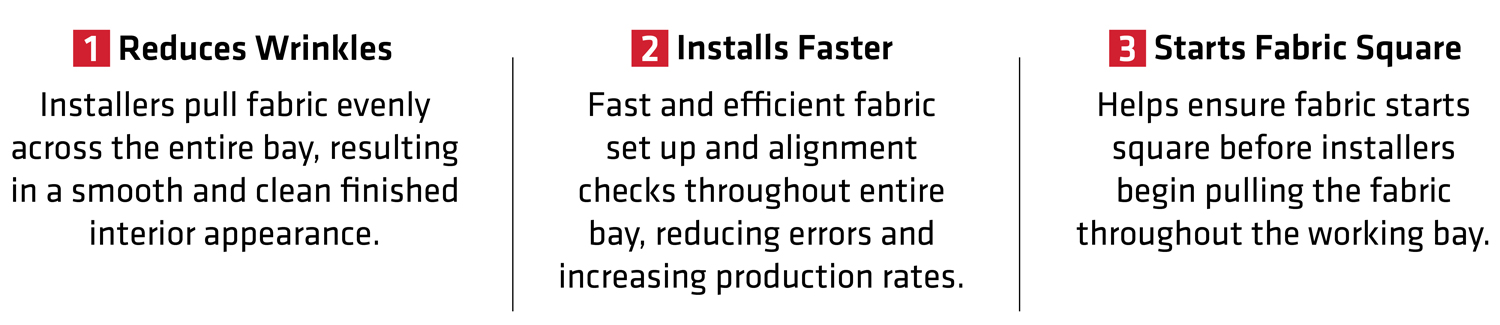

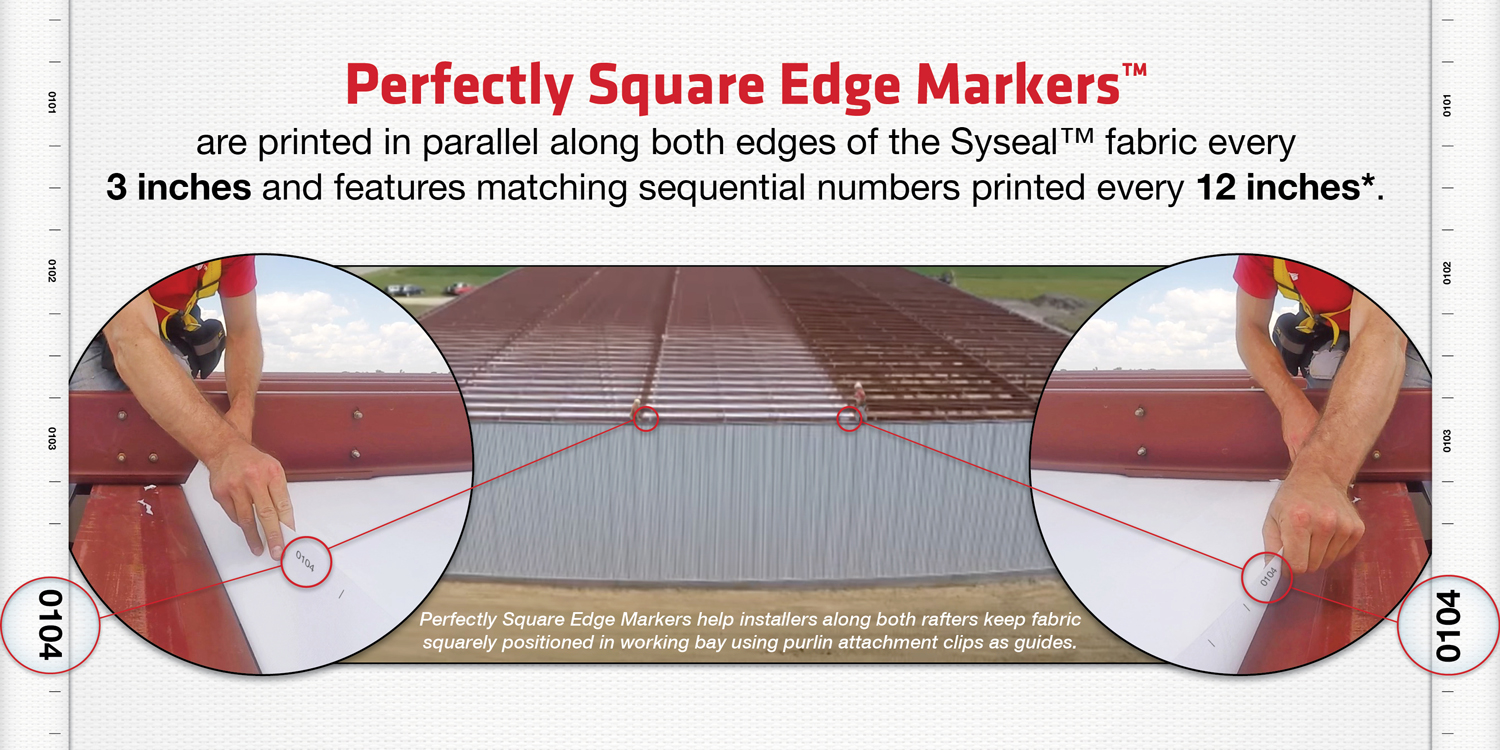

side by side comparison of fabric installed crooked and wrinkly vs fabric installed perfectly straight using Syseal™ fabric with Perfectly Square Edge Markers™ Syseal™ fabric with Perfectly Square Edge Markers™ being installed on metal building Perfectly Square Edge Markers™ top 3 benefits

Start Square

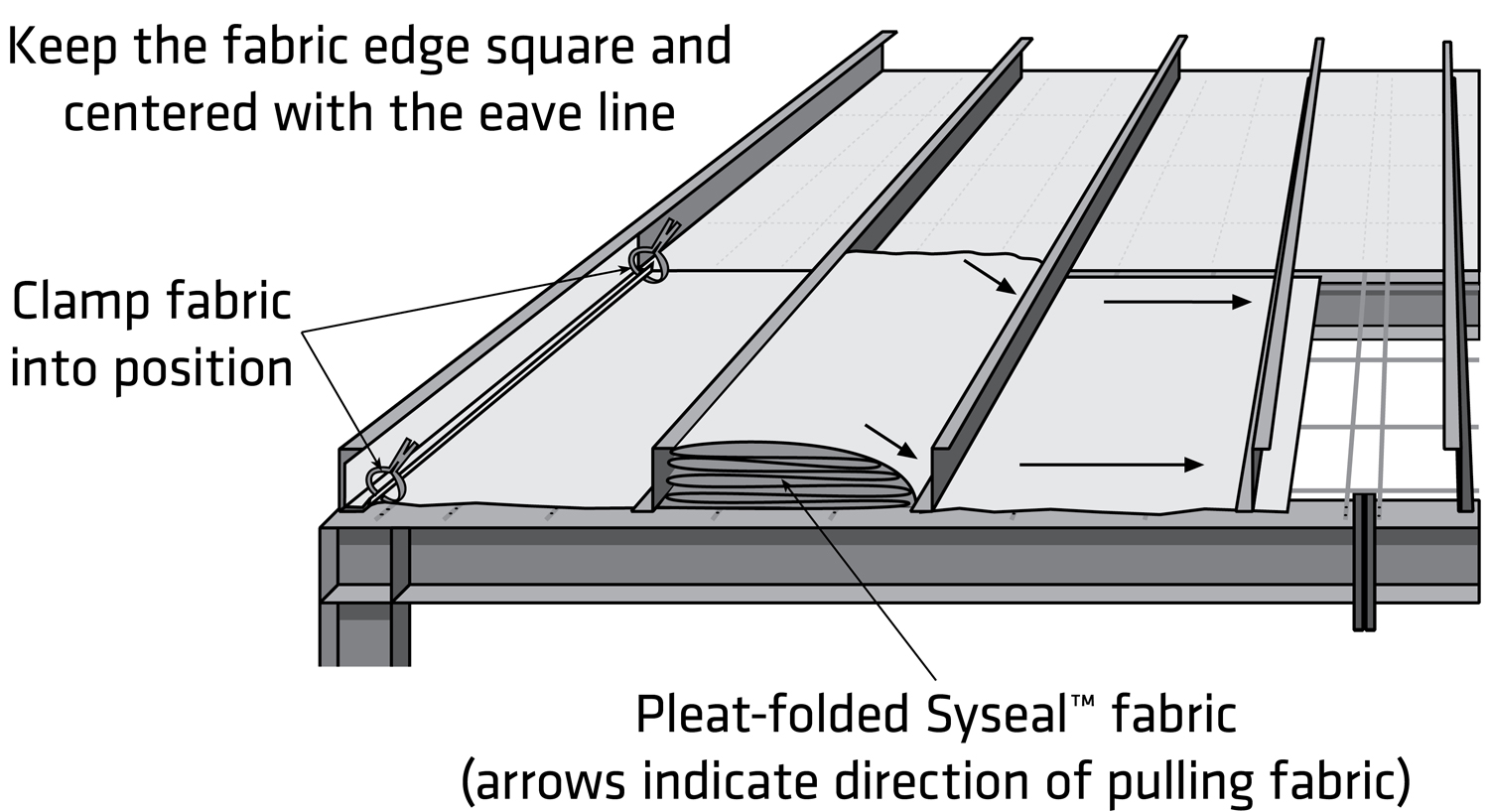

diagram showing how Perfectly Square Edge Markers™ help to start Syseal™ fabric square

Position the custom sized, pleat folded Syseal fabric between any two purlins, normally at the ridge or eave. Pull the bottom corner edges of the fabric to the outside corner of the sidewall eave line and temporarily clamp into position. Perfectly Square Edge Markers will help ensure fabric starts square before installers begin pulling the fabric throughout the working bay.


Stay Square

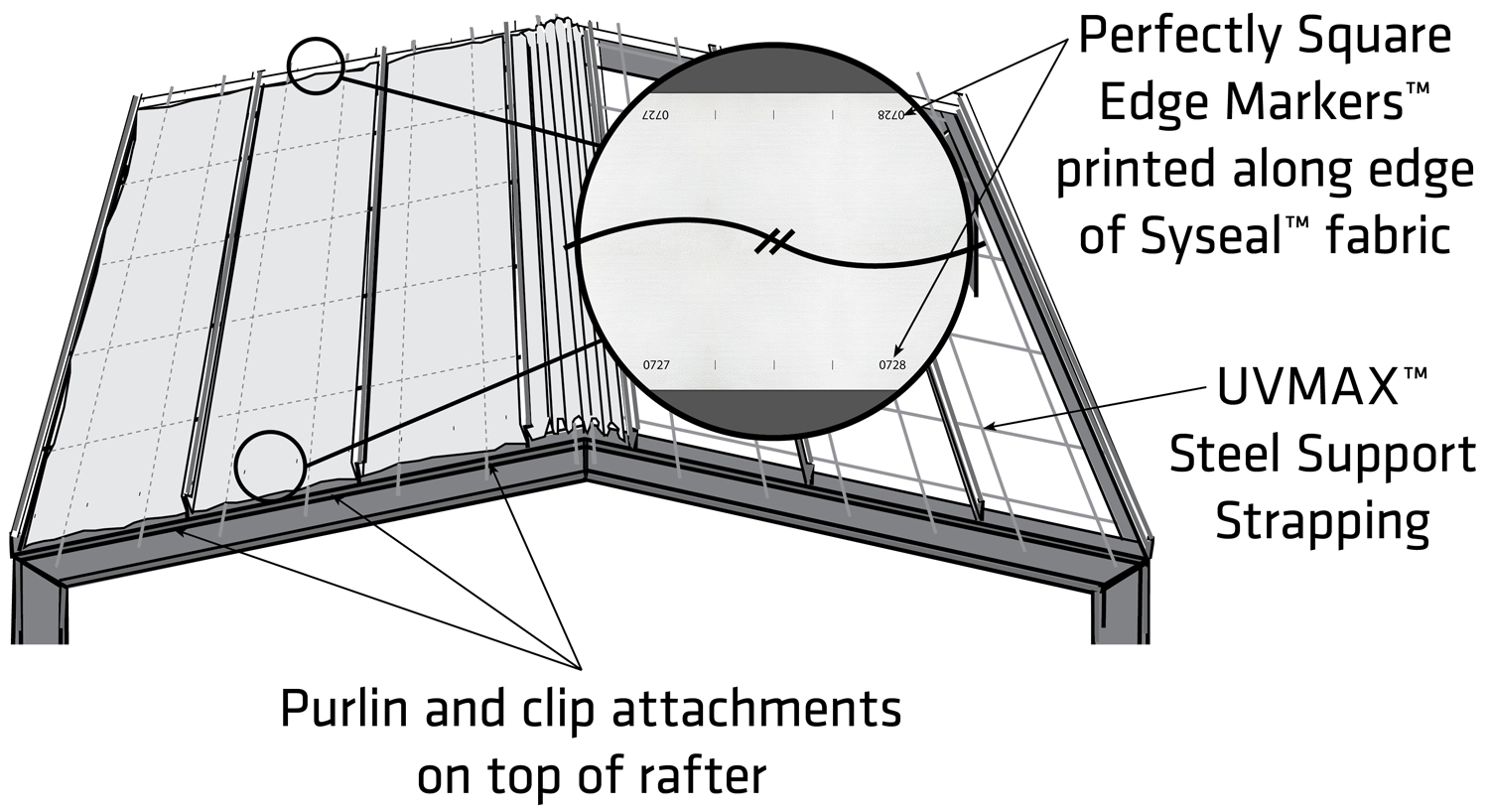

diagram showing how Perfectly Square Edge Markers™ helps to keep Syseal™ fabric square throughout the installation process

Pull the other end of the Syseal fabric liner off of the top of the pleat folded pile towards the ridge space. Pull the fabric tight from the eave strut to the ridge purlin space. Perfectly Square Edge Markers help keep the fabric stay square by easily aligning both fabric sides with clip and purlin attachments on top of the rafter. Center the fabric squarely between the rafters and clamp it into position.


Easy Roof Alignment

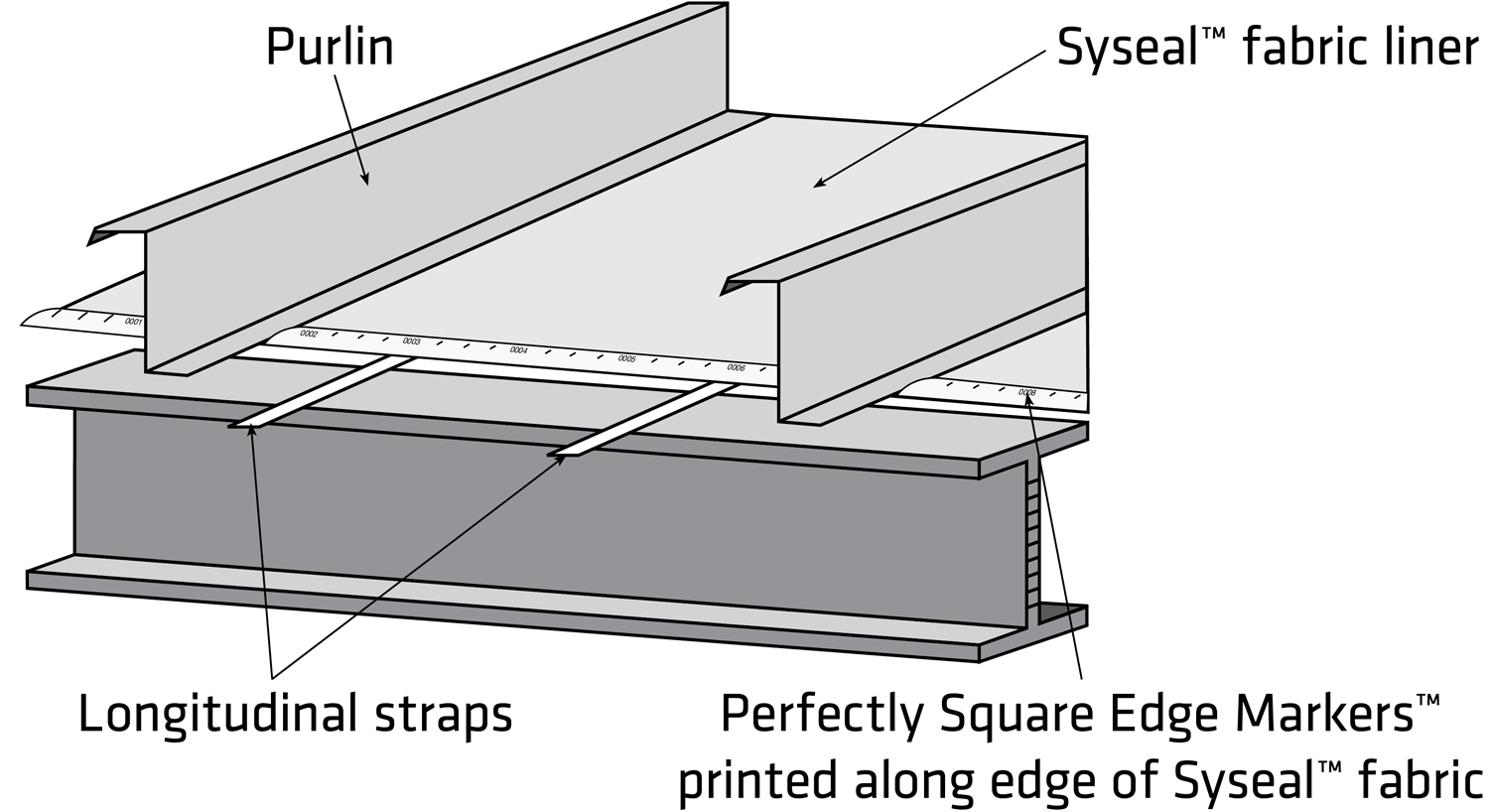

diagram showing how to make a clean notch cut in the Syseal™ fabric with Perfectly Square Edge Markers™ so that it fits neatly around the purlin

Locate the purlin clip attachments on top of the rafters or find the point where the purlin intersects with the edge of the rafter. Use the edge markers, printed on the white finished side of the fabric, to keep the both sides of the fabric square and aligned. Trim the fabric, per the instructions, around all the purlin intersections.


Seal & Insulate

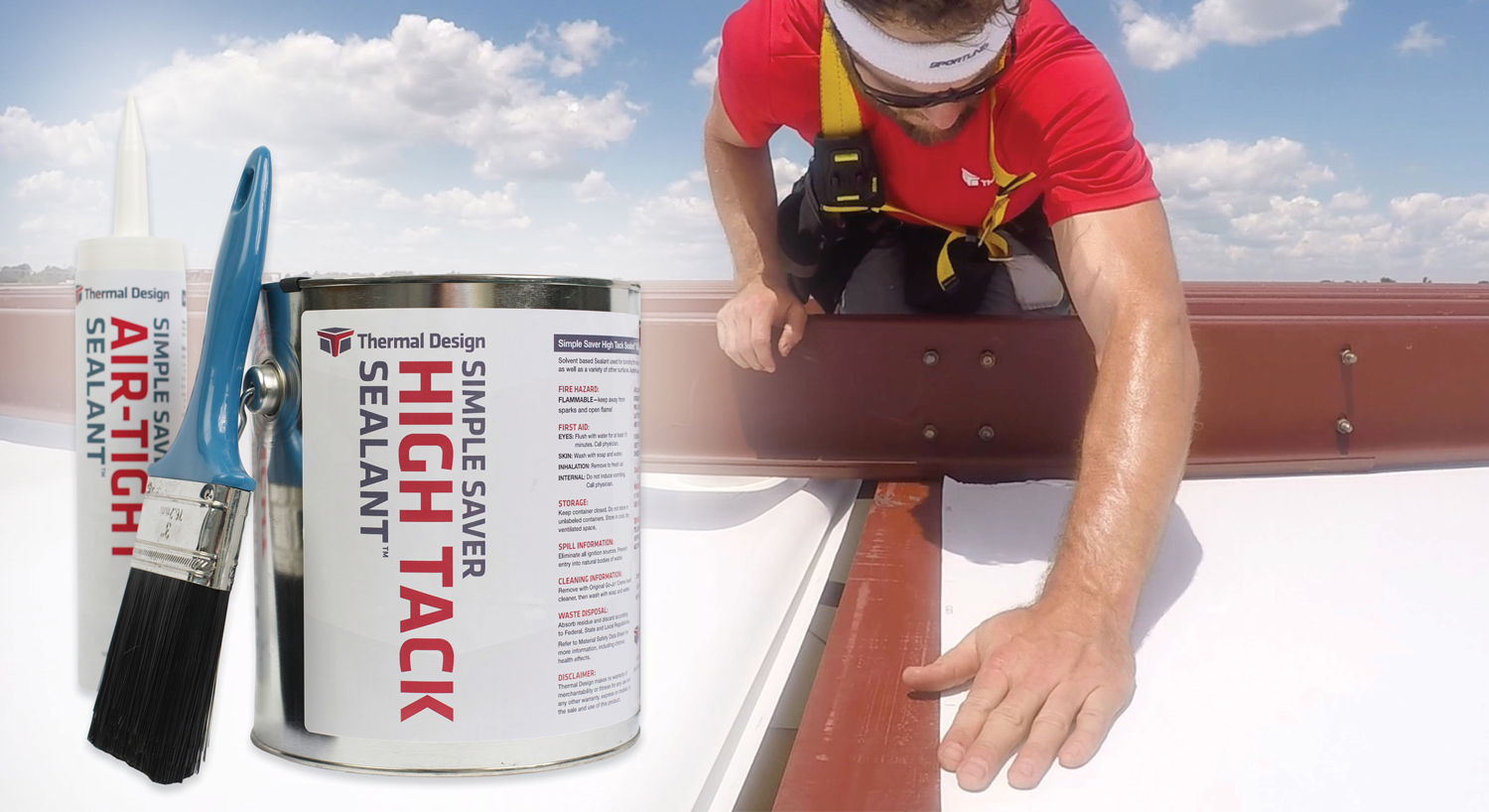

Installer applying Simple Saver High-Tack Sealant™ to seal the Syseal™ fabric with Perfectly Square Edge Markers™ to the top of rafter

Once fabric is trimmed, seal the edges of the fabric, per the instructions, to the topside of the rafter with provided sealant. Note the fabric side with the printed edge markers will be sealed facing down onto the rafter. Printed edge markers on the roof/ceiling fabric will not be visible to the interior space. Insulation is then applied in roof cavities, per the instructions.


Simple Wall Alignment

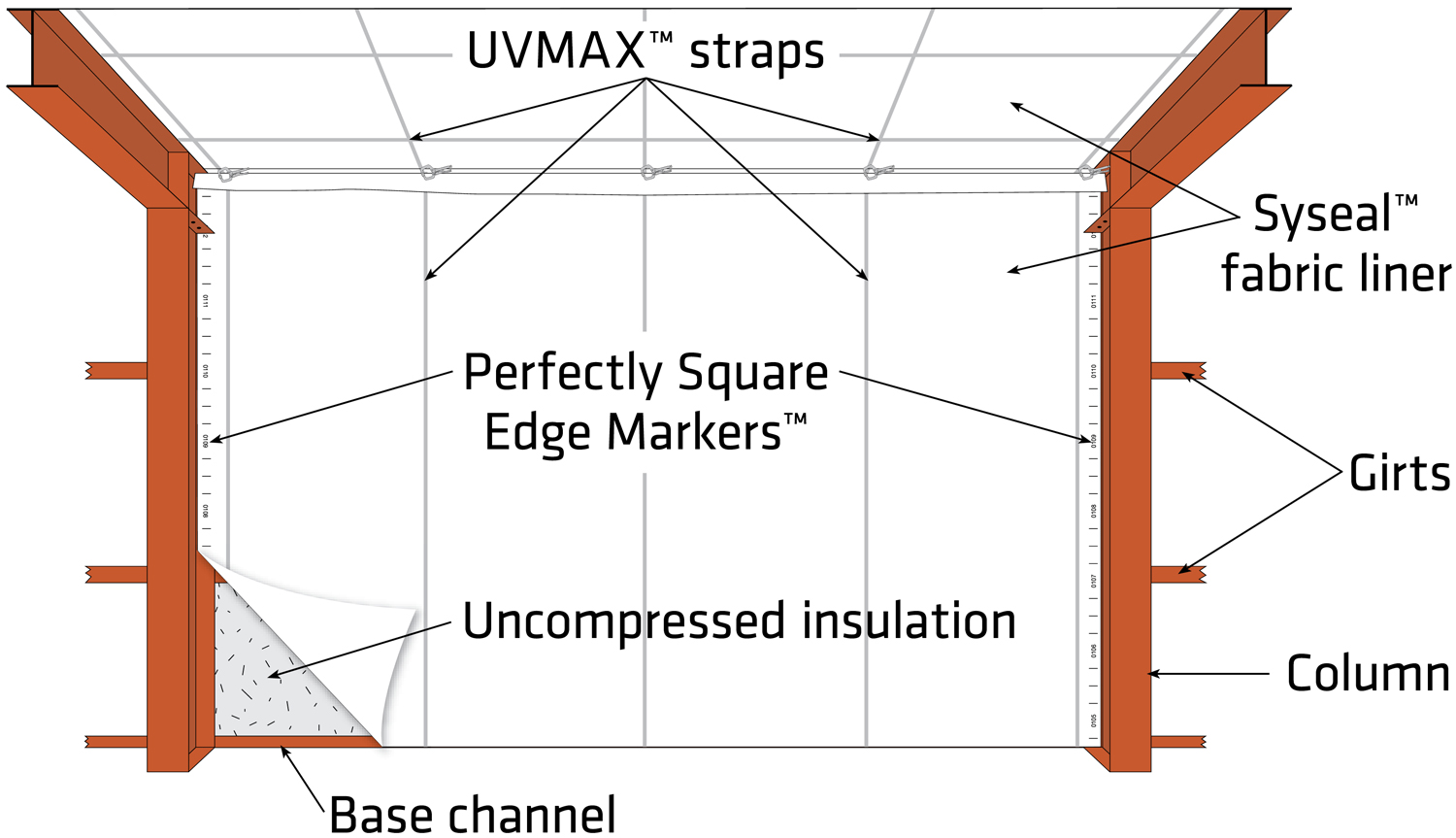

diagram showing Syseal™ fabric with Perfectly Square Edge Markers™ wall installation detail

Perfectly Square Edge Markers are typically printed on the white finished side of wall fabric allowing for quick and easy alignment at eave, base channel, and/or girts. Start the wall fabric square at the eave line (or base channel) and clamp into position. Straighten wall fabric, seal around perimeter and install UVMAX™ steel straps, per the instructions.

exclamation point alert icon

Starting the fabric square and centered reduces potential wrinkles, improves aesthetics, and minimizes installation errors from start to finish.

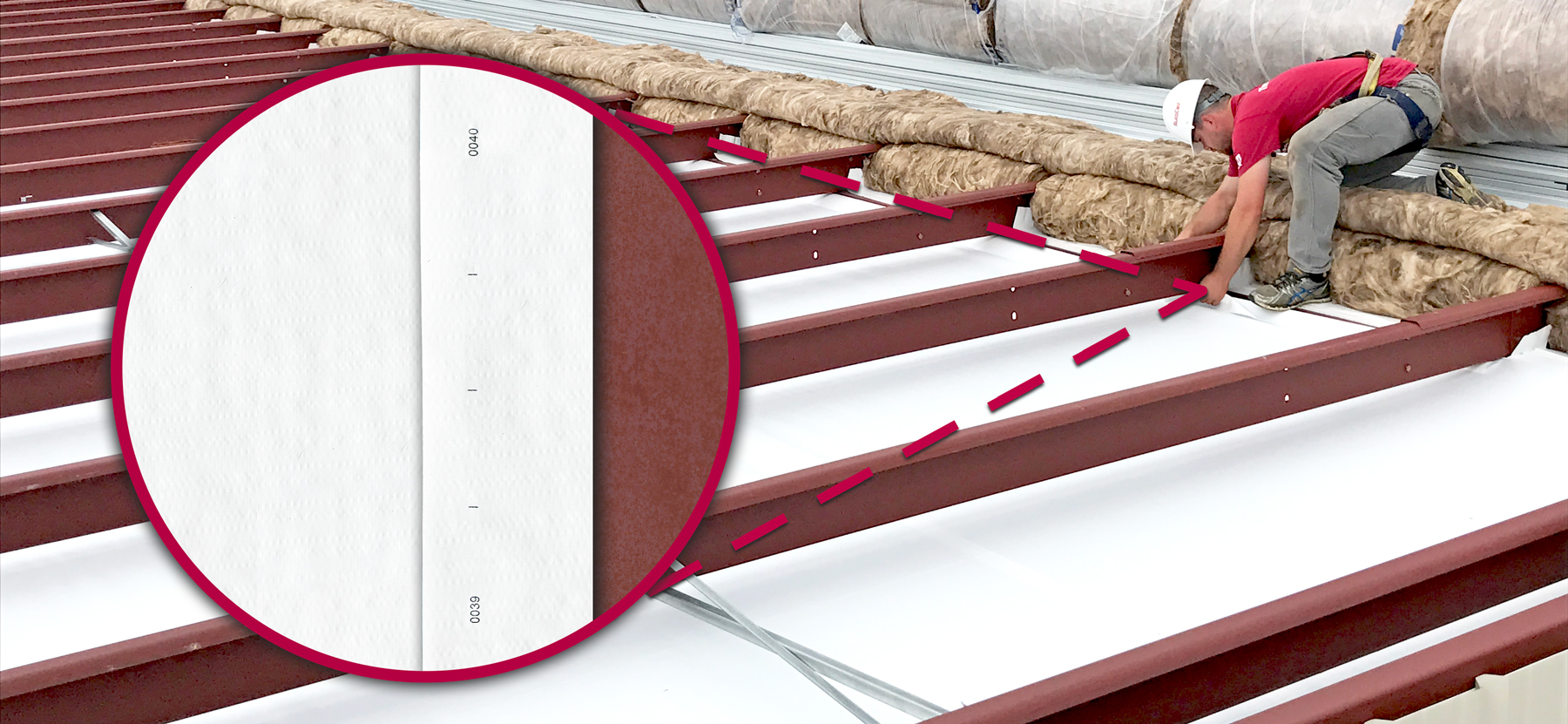

photo of Thermal Design team member installing AutoCeil Automated Insulation System fabric with Perfectly Square Edge Markers™ on the roof of a metal building with callout bubble showcasing Perfectly Square Edge Markers™

Exclusively Available with Thermal Design Liner Systems

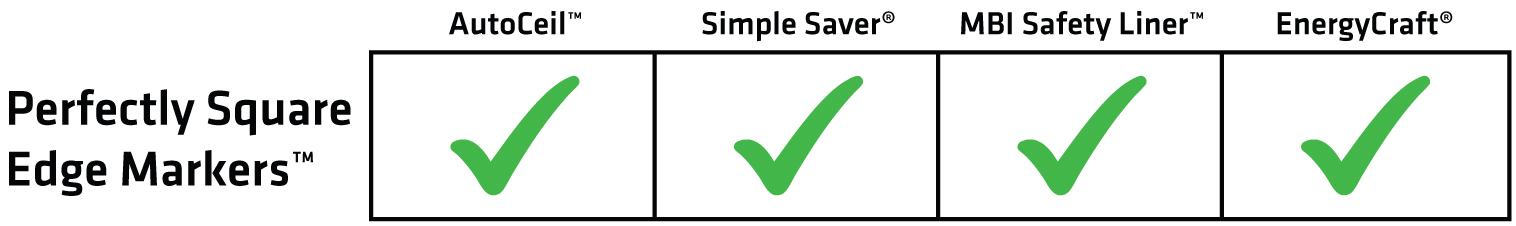

Chart showing that Perfectly Square Edge Markers™ are exclusively available with Thermal Design and are compatible with all Thermal Design Liner Systems
